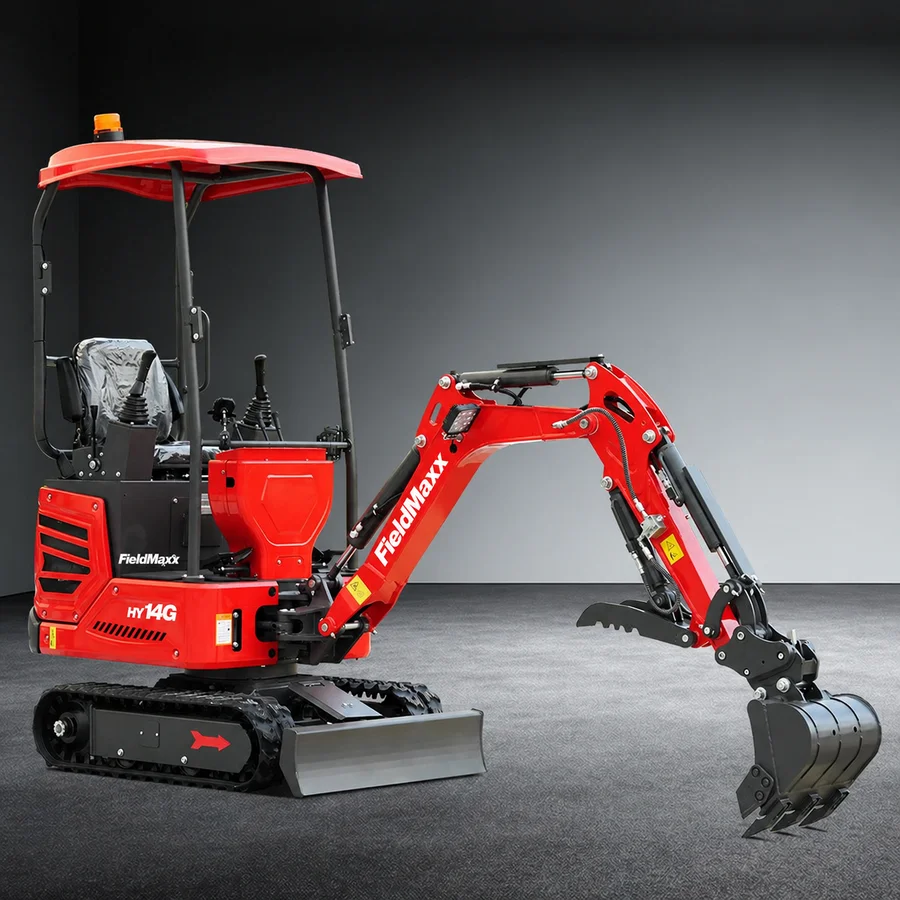

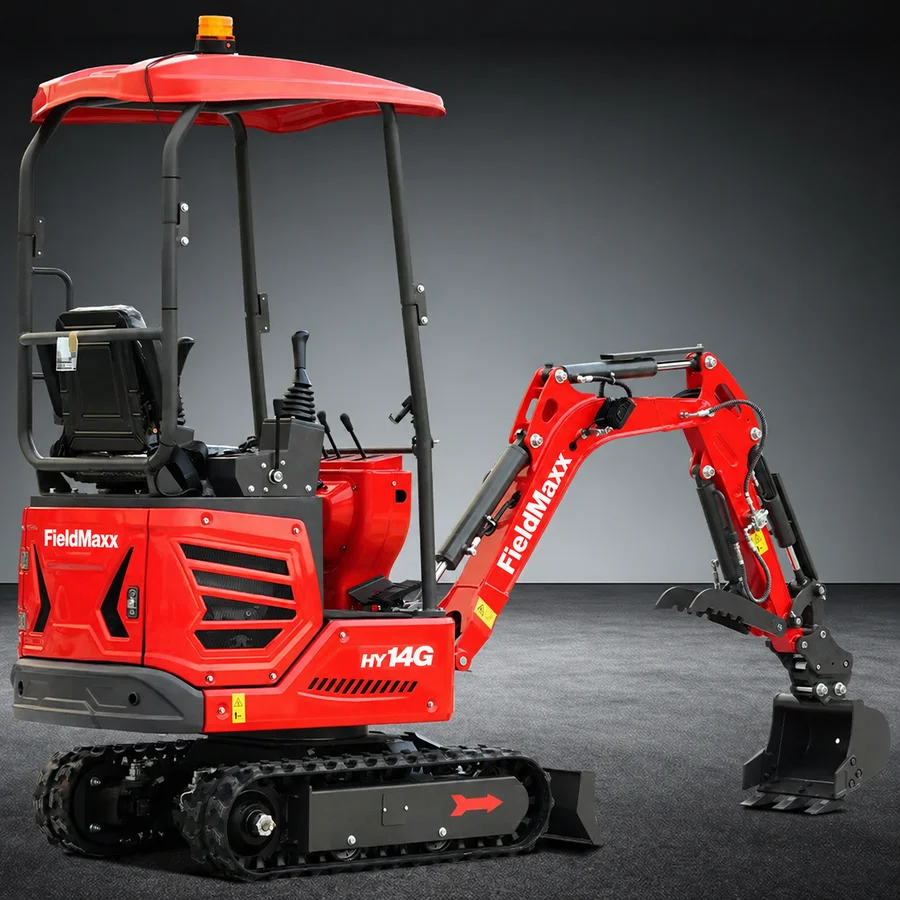

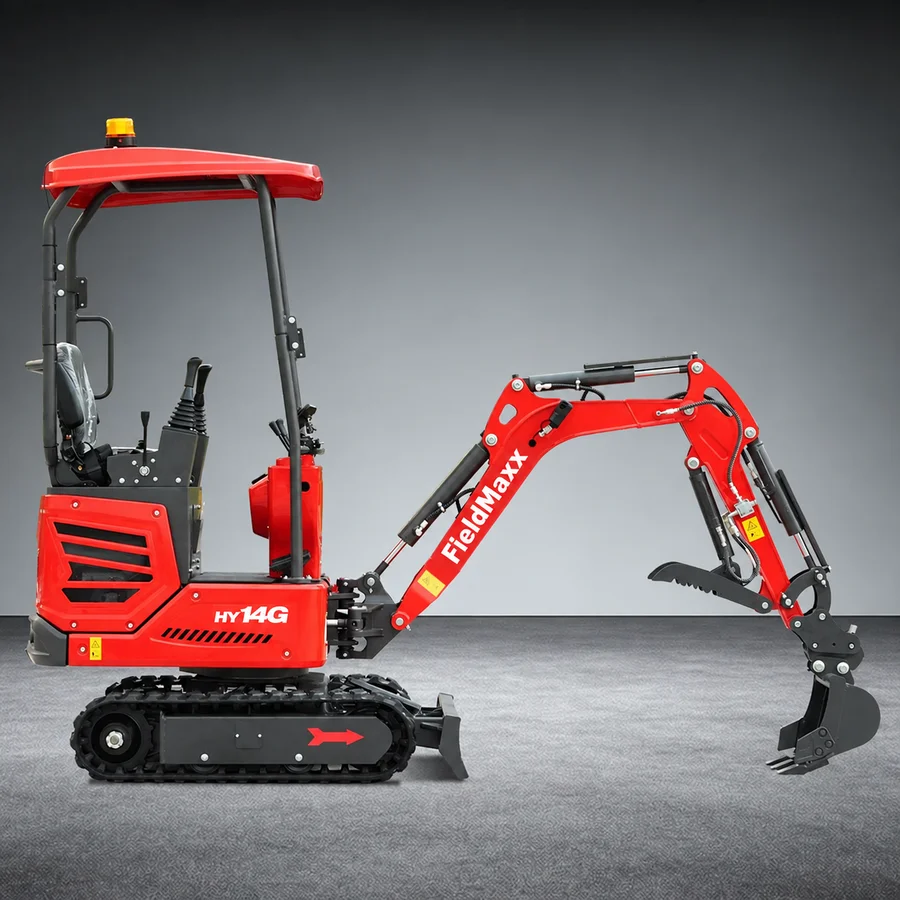

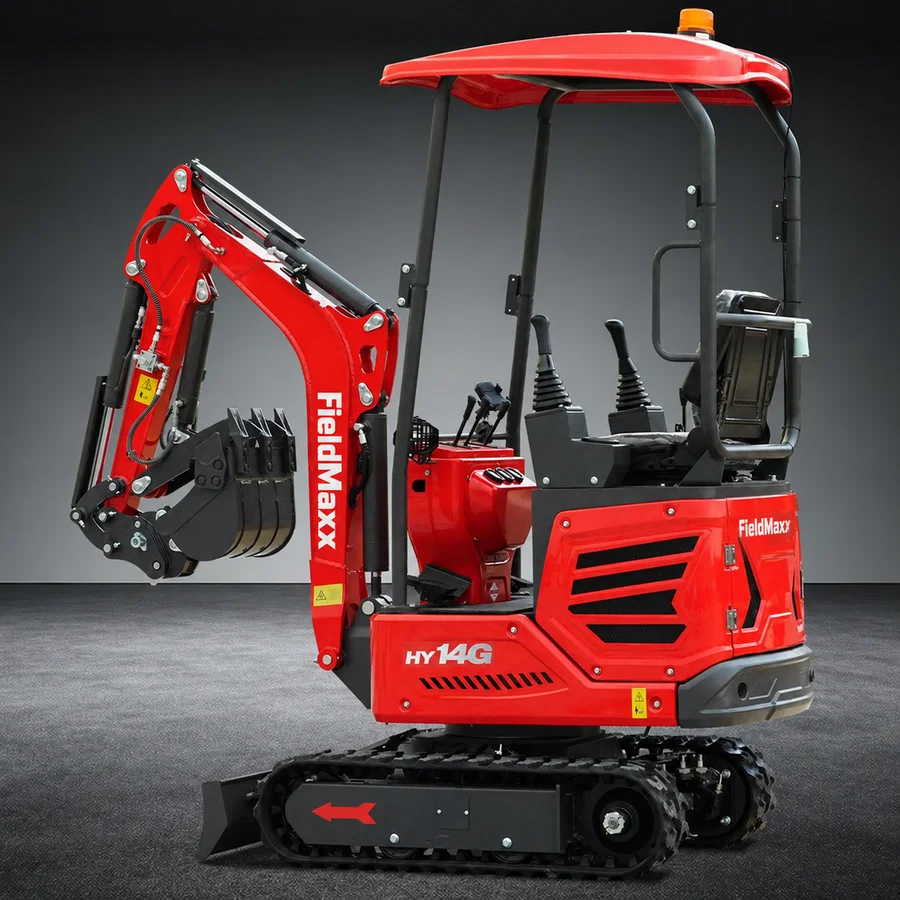

FieldMaxx FX14G Mini Excavator

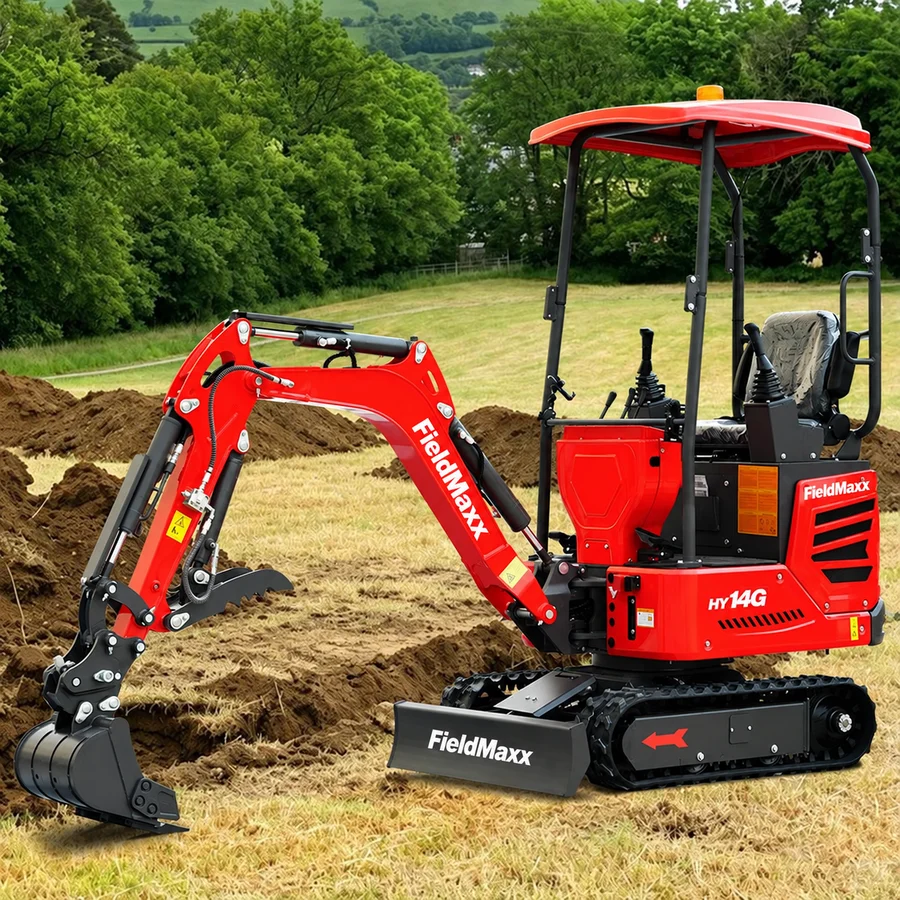

A 1,400 kg compact excavator with telescopic undercarriage, dozer blade and boom swing. Built for landscaping, drainage and foundation work in tight American backyards.
$4,499
$5,699
SAVE 21%
Includes free delivery to the continental United States.
New machine, in US stock, ready to ship.
Operating weight1,400 kg
Digging depth1,850 mm
Chassis width800 / 950 mm

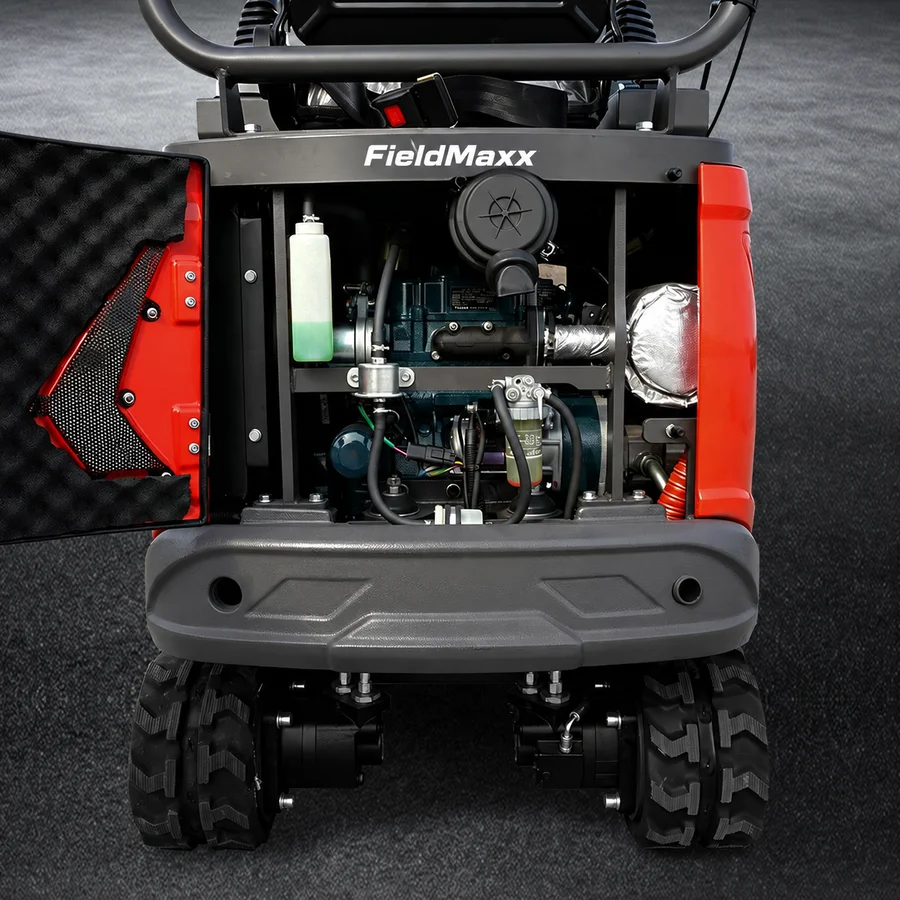

EngineDiesel, 11 kW
Added to your basket. View basket
Buy now adds this machine to your basket and goes straight to checkout.
- Delivery: free to the continental US, 7–14 business days.
- Returns: 30 days from delivery. Return freight cost is the buyer responsibility unless the machine is faulty.
- Warranty: 2 years parts, 1 year engine.
- Payment: card, Apple Pay or Google Pay via Stripe.
Built for the job
Why the FX14G Mini Excavator
Telescopic chassis
Telescopic chassis: 800 mm closed, 950 mm open for stability
1,400 kg
1,400 kg — fits on a trailer rated for 3,000 lb or more
1,850 mm digging depth for drainage, footings and service trenches
1,850 mm digging depth for drainage, footings and service trenches
Full specification
FX14G Mini Excavator technical data
| Operating weight | 1,400 kg |
|---|---|
| Engine | Diesel, 11 kW |
| Max. travel speed | 2.0 km/h |
| Digging depth | 1,850 mm |
| Reach at ground | 3,400 mm |
| Dump height | 2,200 mm |
| Chassis width (tele) | 800 / 950 mm |
| Track width | 230 mm |
|---|---|
| Boom swing | 50° left / 55° right |
| Hydraulic pressure | 17.5 MPa |
| Flow rate | 24 L/min |

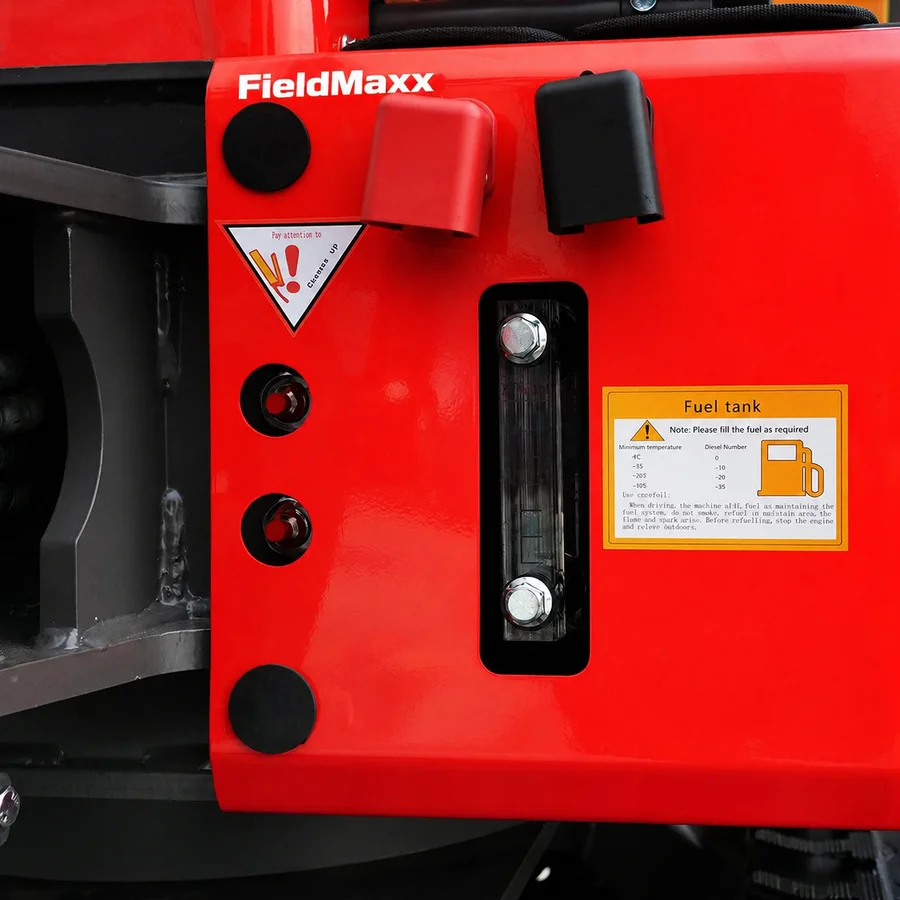

| Fuel tank | 13 L |
| Swing speed | 11 rpm |
| Gradeability | 30% |
| Warranty | 2 yr parts, 1 yr engine |
Specifications are nominal and may vary slightly by production batch.
Questions
About the FX14G Mini Excavator
Will it fit through a standard gate?
Closed to 800 mm it passes through most residential side gates. Measure the narrowest point on your route — usually the gate post — before scheduling delivery.
How do I move it to site?
1,400 kg fits on an equipment or gooseneck trailer rated for 3,000 lb or more. Verify your trailer and tow vehicle ratings before loading.

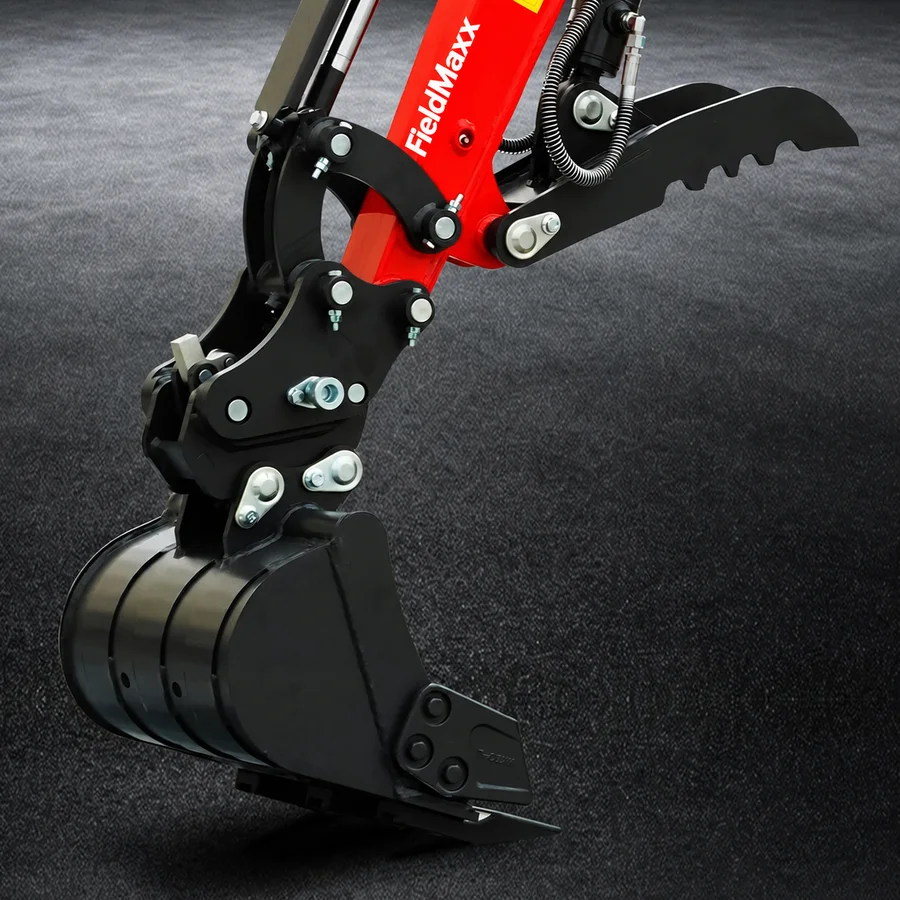

What attachments are available?
Ships with a standard digging bucket. Breakers, augers, log grabbers and additional buckets are available — ask us to add them to your order.
Do I need an operator licence?
No federal licence for private land. Commercial jobsites typically require a NCCO card — a site requirement rather than a federal law.
