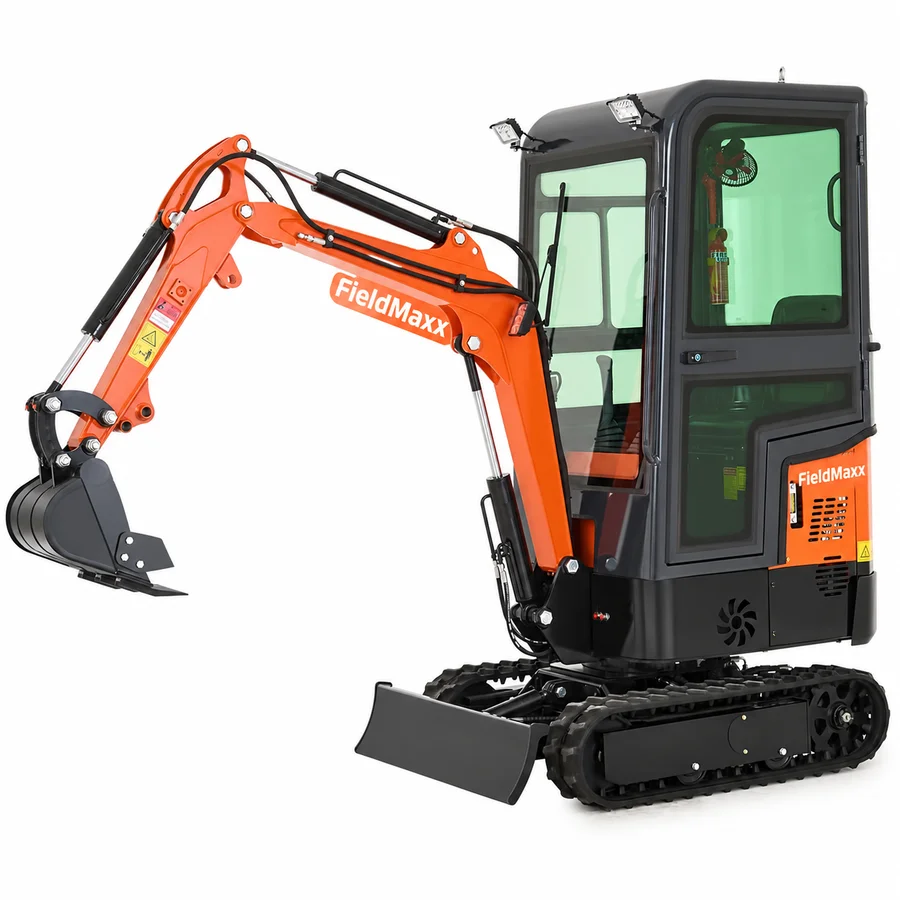

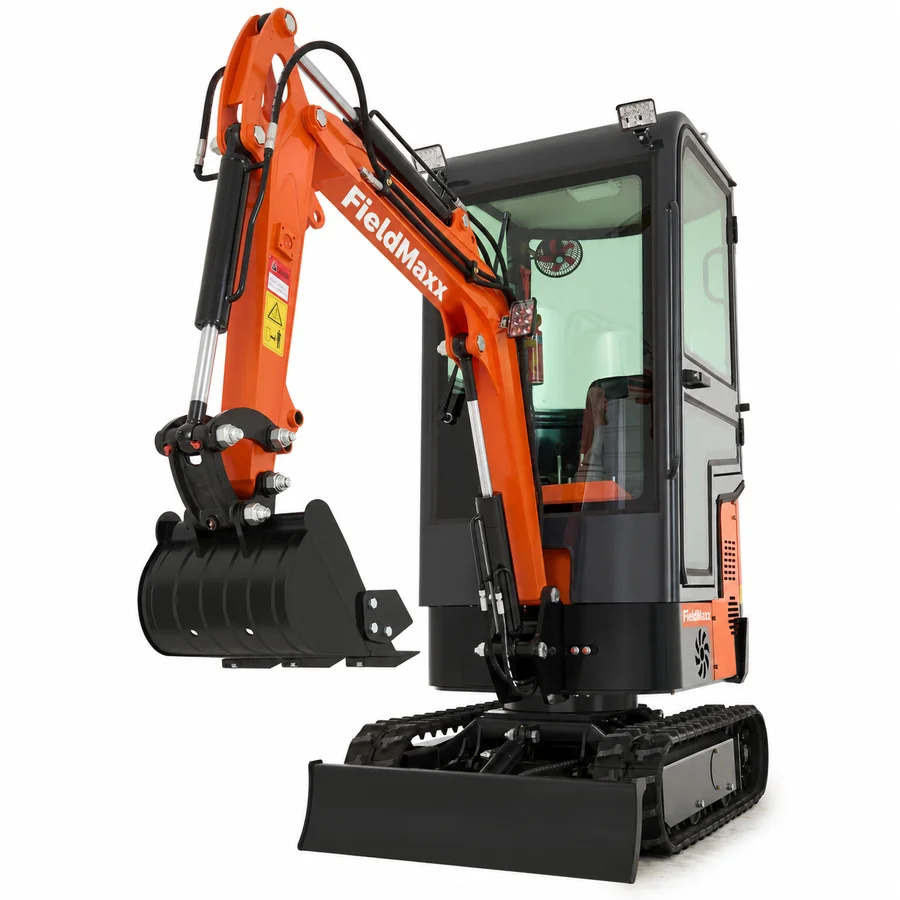

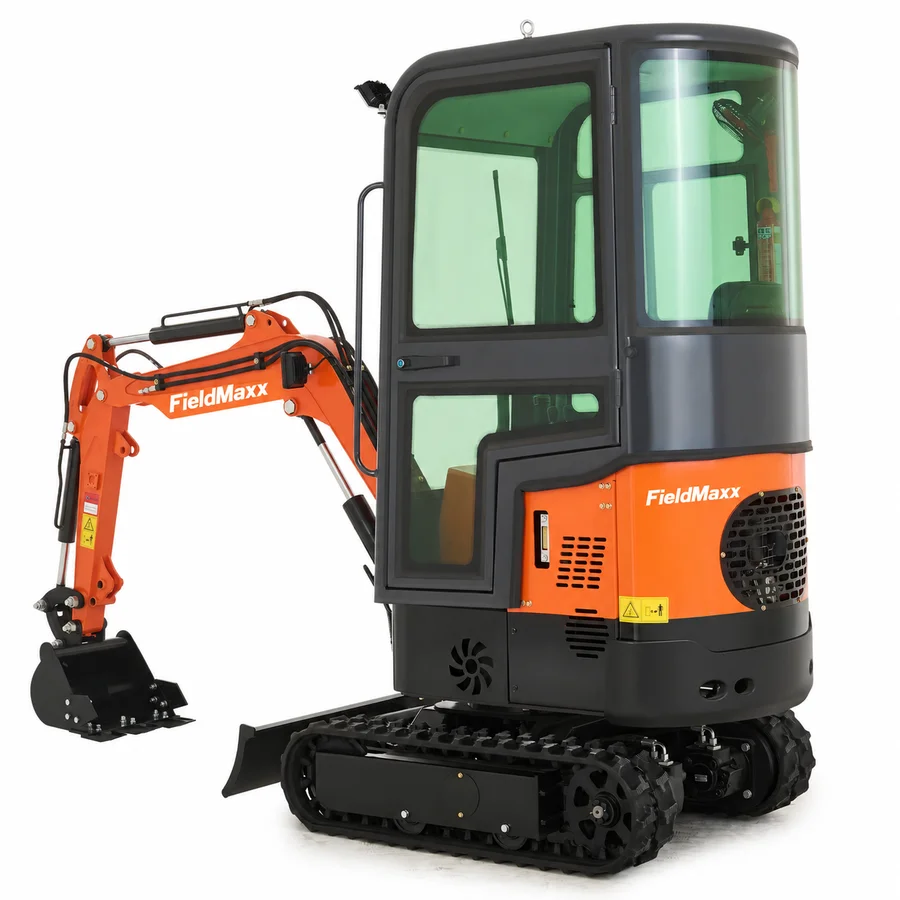

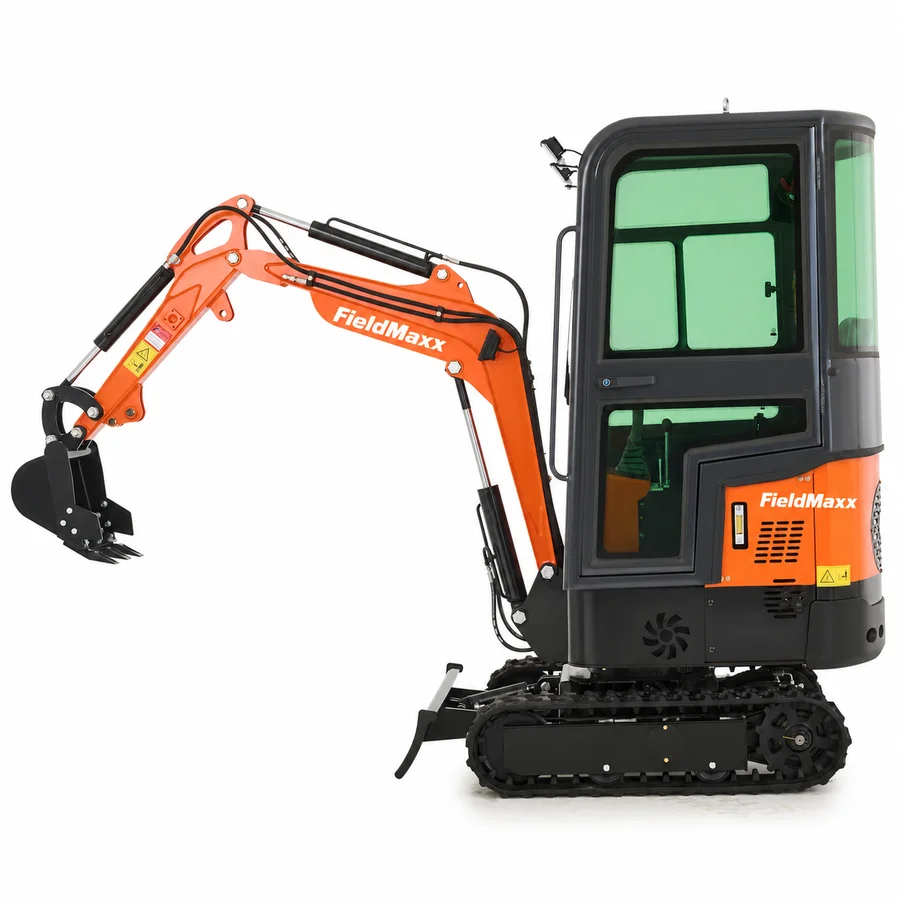

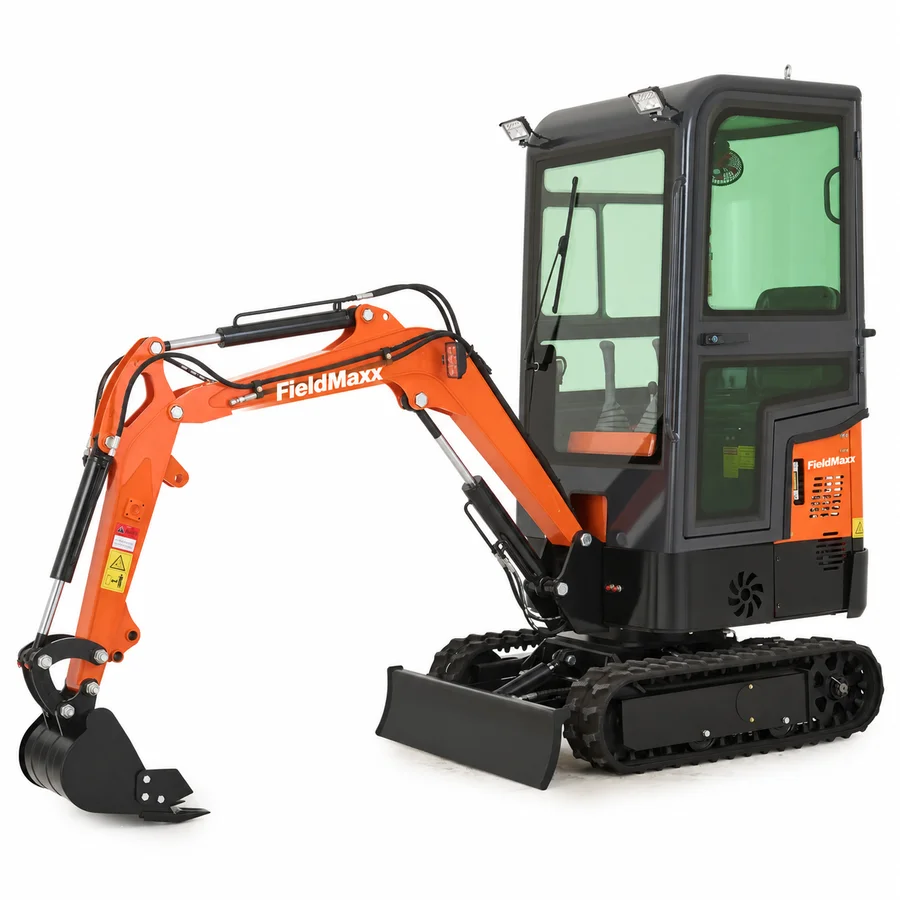

A 2,800 kg fully enclosed cab excavator with heater, panoramic glass and ROPS/FOPS protection. Work through rain, dust and cold without stopping the job.
Includes free delivery to the continental United States.
New machine, in US stock, ready to ship.
Added to your basket. View basket
Buy now adds this machine to your basket and goes straight to checkout.
Built for the job
Full ROPS/FOPS steel cab — meets ISO 12117-2 and ISO 10262
270° panoramic glass for maximum visibility on site
2,800 mm digging depth — over 9 ft below grade
Full specification
| Operating weight | 2,800 kg |
|---|---|
| Engine | Diesel, 21 kW |
| Max. travel speed | 4.5 km/h |
| Digging depth | 2,800 mm |
| Reach at ground | 4,700 mm |
| Dump height | 3,200 mm |
| Cab | Full ROPS/FOPS steel |
| Glazing | 270° panoramic |
|---|---|
| Track width | 300 mm |
| Hydraulic pressure | 21 MPa |
| Flow rate | 65 L/min |
| Fuel tank | 35 L |
| Swing speed | 9 rpm |
| Gradeability | 35% |
| Warranty | 2 yr parts, 1 yr engine |
Specifications are nominal and may vary slightly by production batch.
Questions

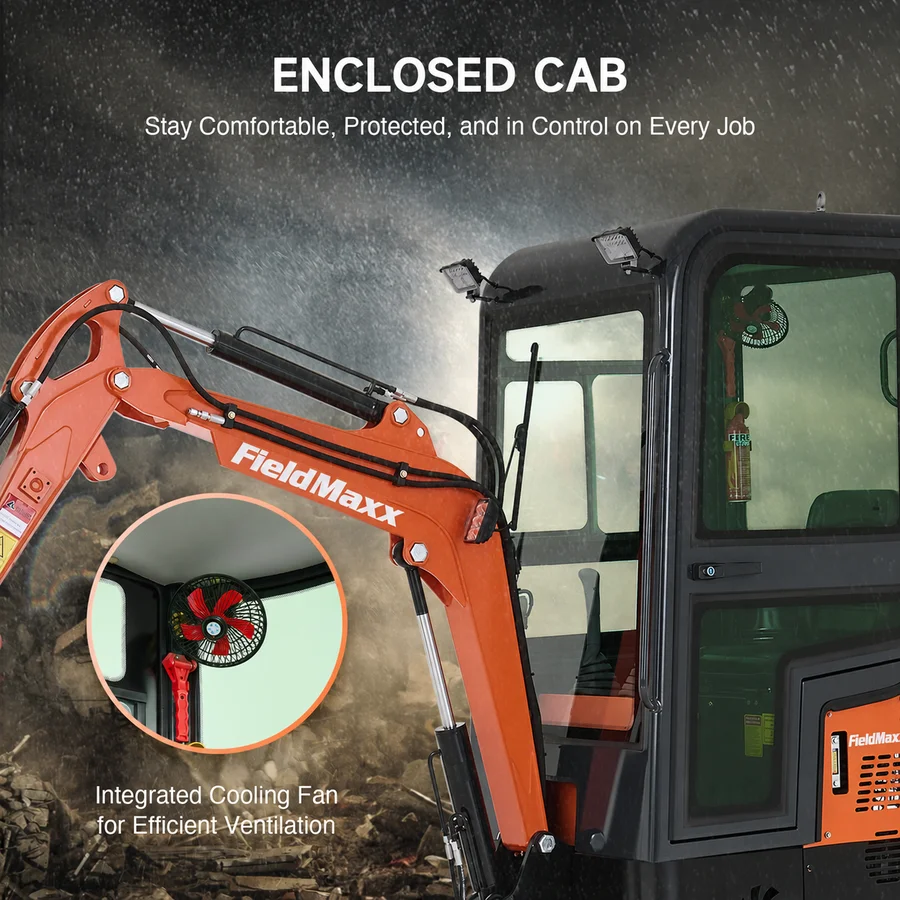

Yes — a 12 V heater is standard. No A/C, but the large glass area and roof vent keep airflow comfortable in summer.
Roll-Over Protection Structure / Falling Object Protection Structure. The cab meets ISO standards required on most commercial and municipal jobsites.
2,800 kg requires a trailer rated for at least 7,000 lb — typically a low-boy or pintle-hitch trailer behind a Class 5 or 6 truck.
65 L/min at 21 MPa handles heavy-duty breakers, industrial thumbs and forestry mulchers.
