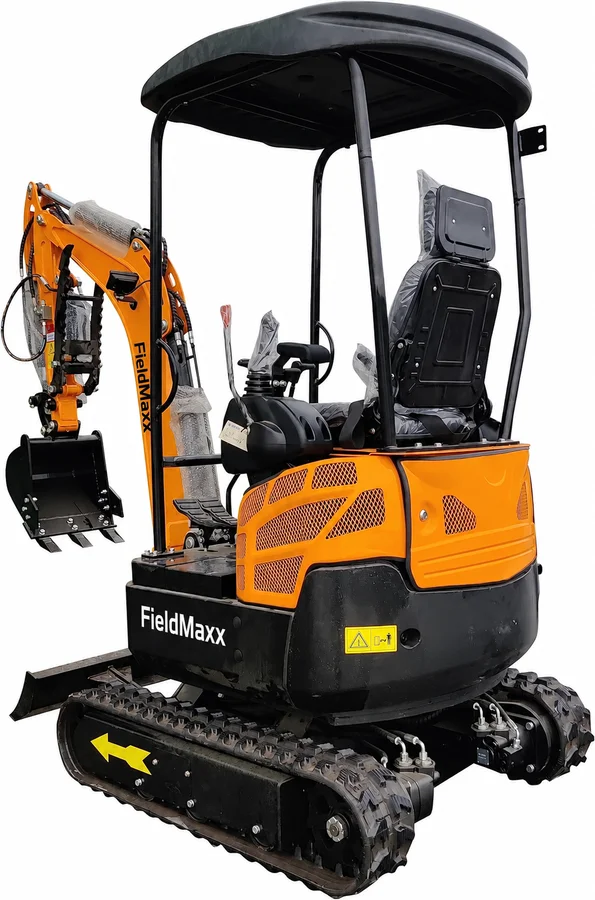

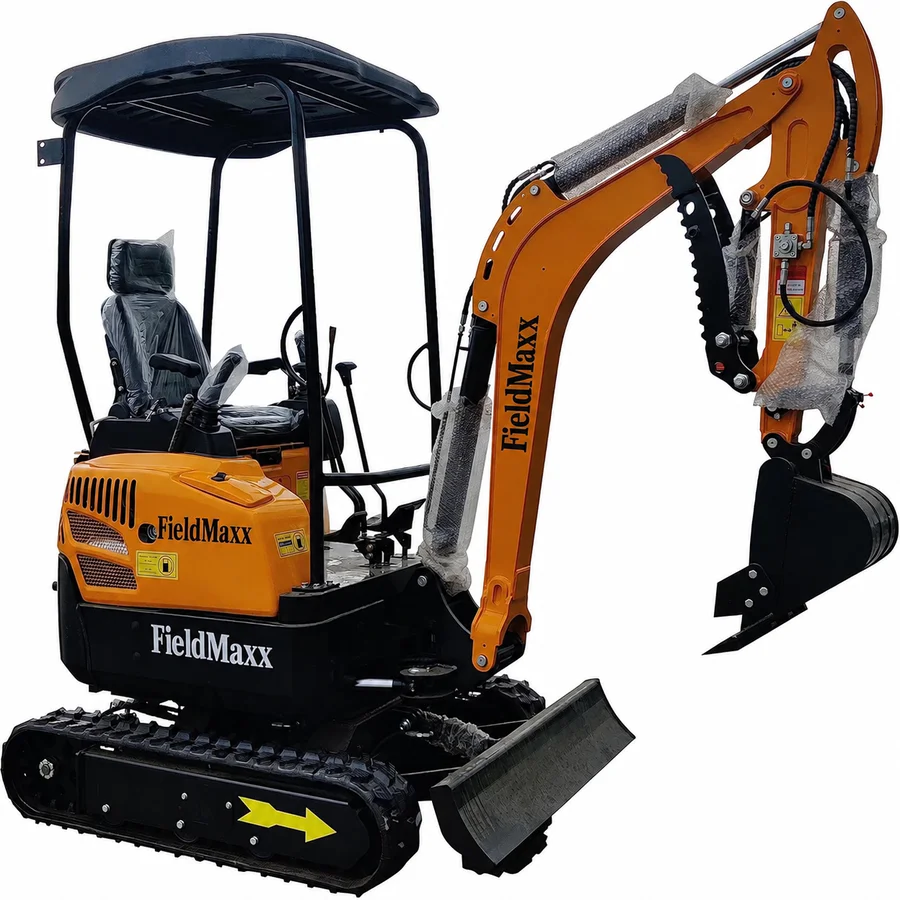

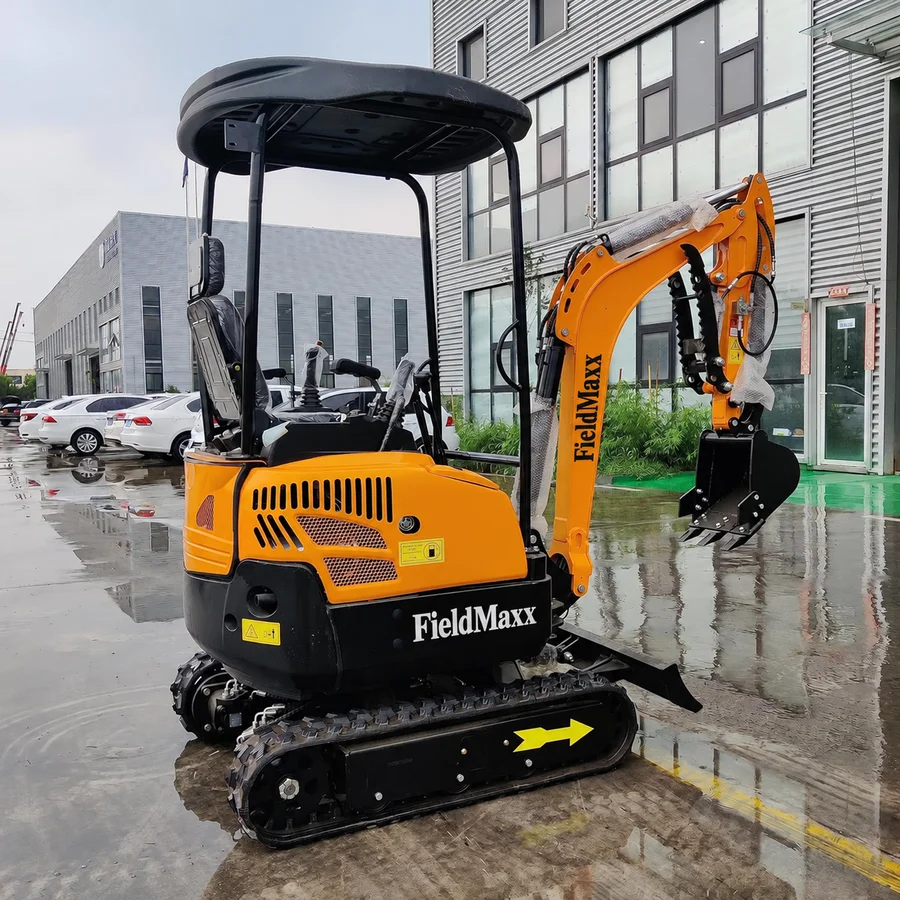

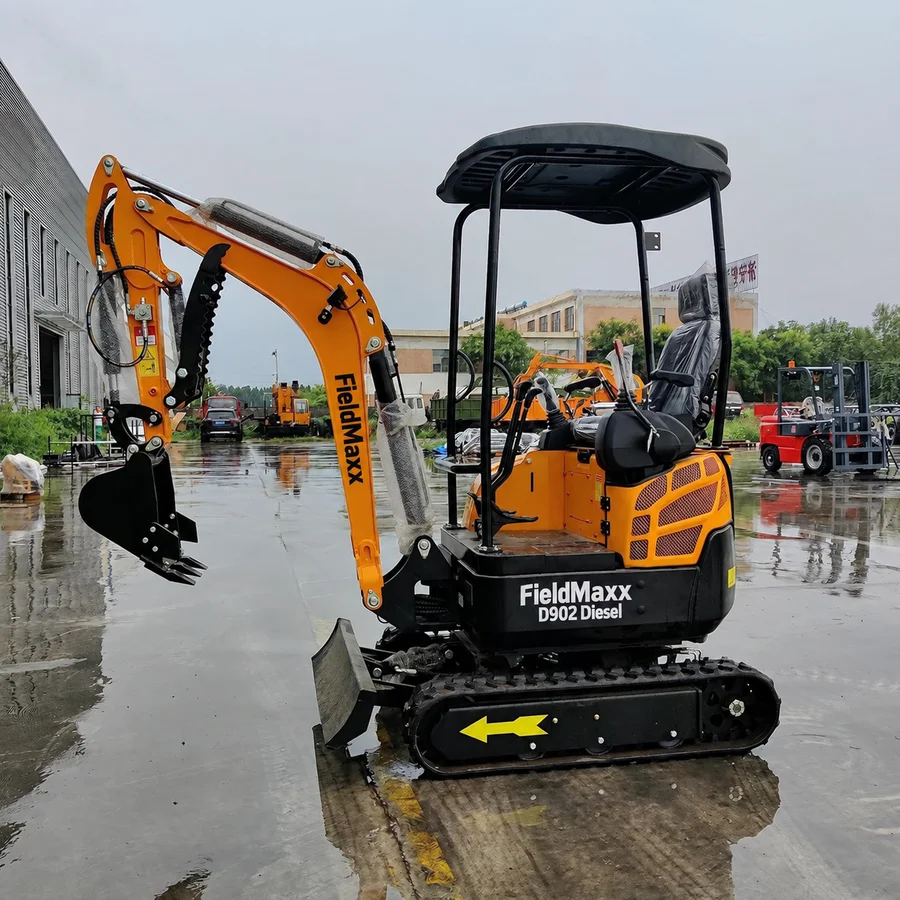

4 views — tap a thumbnail to enlarge.
A 2,500 kg diesel excavator with a three-piece boom, pilot-controlled hydraulics and a full-rotation slew ring. Built for productive 8-hour shifts on residential construction sites.
Includes free delivery to the continental United States.
New machine, in US stock, ready to ship.
Added to your basket. View basket
Buy now adds this machine to your basket and goes straight to checkout.
Built for the job
2,650 mm digging depth — over 8 ft 8 in below grade
Three-piece boom for maximum reach without repositioning
Pilot-controlled hydraulics for precise, low-fatigue operation
Full specification
| Operating weight | 2,500 kg |
|---|---|
| Engine | Diesel, 18.5 kW |
| Max. travel speed | 4.5 km/h |
| Digging depth | 2,650 mm |
| Reach at ground | 4,500 mm |
| Dump height | 3,100 mm |
| Slew torque | 9.3 kN·m |
| Track width | 300 mm |
|---|---|
| Boom type | Three-piece |
| Hydraulic pressure | 20 MPa |
| Flow rate | 60 L/min |
| Fuel tank | 30 L |
| Swing speed | 9 rpm |
| Gradeability | 35% |
| Warranty | 2 yr parts, 1 yr engine |
Specifications are nominal and may vary slightly by production batch.
Questions
2,500 kg requires a low-boy or equipment trailer rated for at least 6,000 lb, pulled by a Class 5 truck or larger.
Yes — a bolt-on ROPS/FOPS cab is available separately. Contact us to include it in your order.
60 L/min at 20 MPa — suitable for heavy-duty thumbs, large breakers and big augers.
With an appropriate trailer, yes. Check your state's overwidth and overweight transport laws; a pilot vehicle may be required in some states.
